Metal Beam Crash Barrier
Protection
you Trust
Jindal India, amongst the largest producers of Metal Beam Crash Barriers (Guard Rails) in India, proudly introduces the Jindal Crashsafe range of Metal Beam Crash Barriers.

These barriers have already earned the trust of major national and state highways across the country.

A Metal Beam Crash Barrier is a roadside safety system designed to prevent vehicles from veering off the road, reducing the severity of accidents. Made from galvanized steel, these barriers absorb impact energy and redirect vehicles back onto the roadway, minimizing injury risks. These barriers play a crucial role in road safety, especially on highways, bridges, and accident-prone zones.

Jindal Crashsafe crash barriers are engineered to save lives, designed to offer an advanced level of safety and help prevent accidents on roads and highways. Built from the highest-grade materials and rigorously tested to exceed industry standards, Jindal Crashsafe metal beam crash barriers ensures maximum impact resistance and long-lasting performance. With innovative design elements that enhance energy absorption, the Jindal Crashsafe range provides superior durability and robust protection.

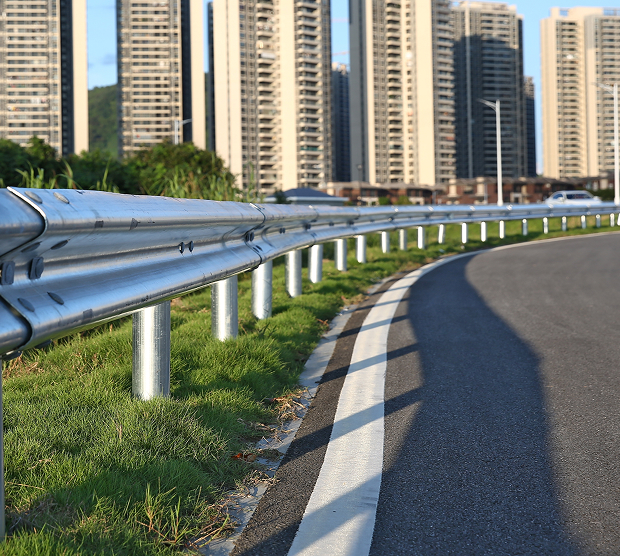

Advantages
Metal Beam Crash Barrier

Crafted from premium-grade materials, ensuring exceptional impact resistance and longlasting performance.

Incorporates innovative design elements to enhance energy absorption, reducing collision severity and minimising the risk of vehicle penetration.

Rigorously crash-tested to meet stringent international quality standards, ensuring reliable performance and superior safety for both vehicles and occupants.

Produced in state-of-the-art manufacturing facilities with cutting-edge technology and a rigorous quality control system.

Produced in state-of-the-art manufacturing facilities with cutting-edge technology and a rigorous quality control system.

Ready stock availability, swift delivery times, and a customer-centric, transparent business model (E-sales platform).
Our Product
Range

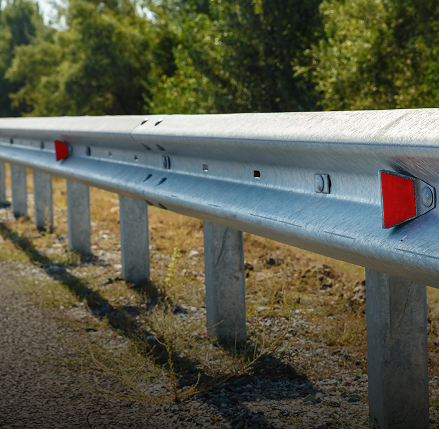

W-Beam

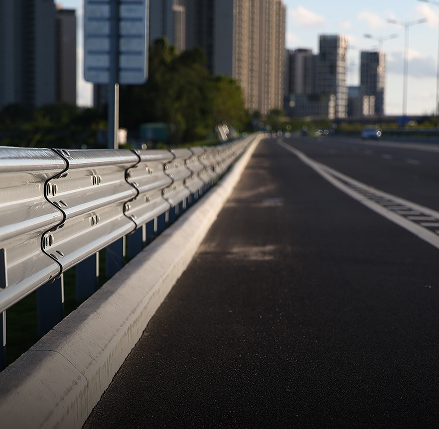

Thrie Beam

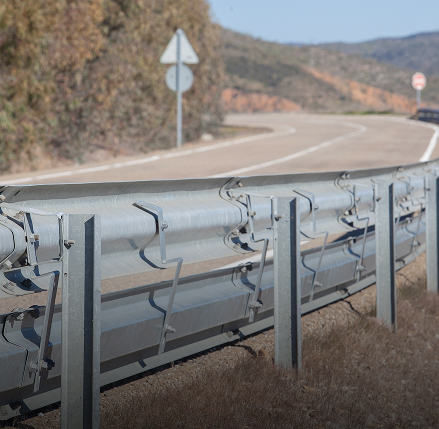

Posts & Spacers

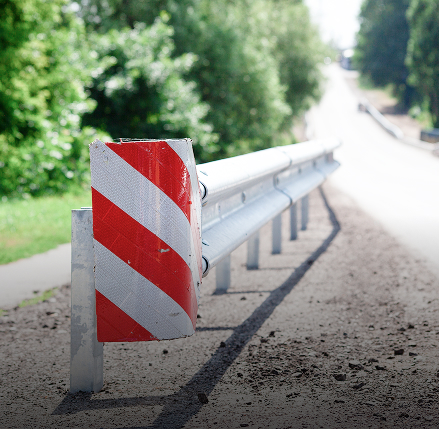

End Terminals

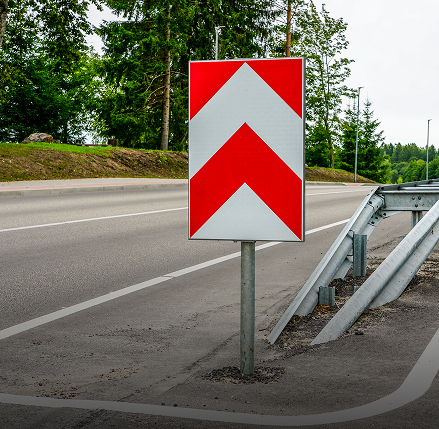

End Shoes

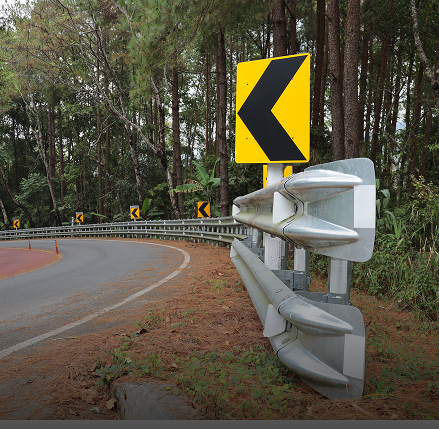

Fish Tales
Specifications

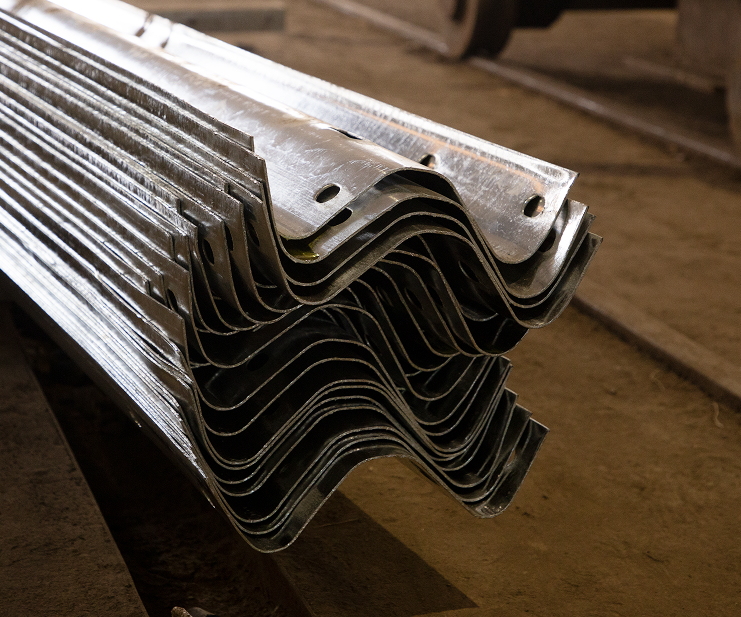

W-Beam/Thrie Beam Metal Crash Barriers
Design Single or double-sided
guard rails
Manufacturing Process Cold forming from HR coil slits with fully automated mills
Material 3 mm (customizable)
cold-rolled sections
Strength Minimum yield strength of 2400 kg/sqcm
Dimensions
Width: 312 mm / 510 mm
Corrugation Depth: 83 mm
Total Length: 4.318 M (Effective Length: 4 M)
(Can also be Customized as per customer’s requirement)
Protective Coating Hot-dip galvanized with
550 g/sqm zinc coating
Compliance Conforming to Ministry of Road Transport & Highways (MORTH) specifications

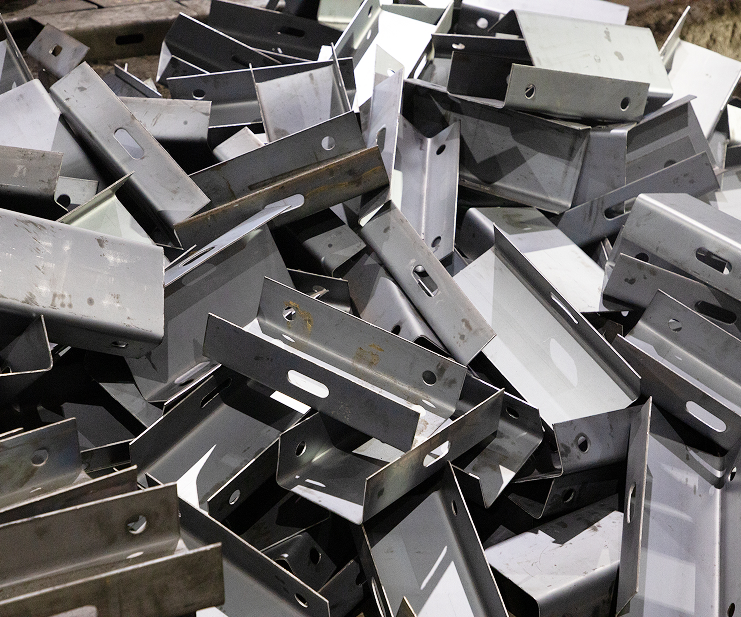

Post & Spacer Channel
Design Cold-rolled sections
Strength Minimum yield strength of 2400 kg/sqcm
Coating Hot-dip galvanized with
550 g/sqm zinc coating
Strength Minimum yield strength
of 2400 kg/sqcm
Dimensions
Post/Spacer Size: 150 mm x 75 mm x 5 mm (thickness)
Customization: Available as per project consultant’s approved drawing
Compliance Details
Base Material HR Coil meeting IS: 5986/10748/2062 standards
Grade Fe 410, 510 (from TATA/SAIL /JINDAL)
Yield Strength 235-255 MPa (minimum)
Tensile Strength 360-410 MPa (minimum)
Galvanization Standard Conforms to IS: 1367
Fastener Standard As per IS:1364
As per NHAI circular and guidelines, every Jindal Metal Crash Barrier carries following details for brand identification and traceability
Sticker on every W Beam/
Thrie Beam comprising batch
no and company logo
QR Code on each bundle
entailing specifications and
installation manual
Hard embossing of Jindal
(India) trademark on
manufacturing lines
Applications

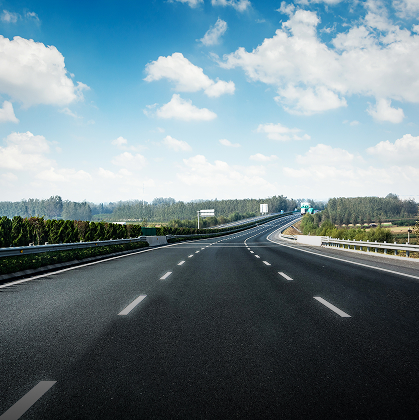

Highways and
Expressways

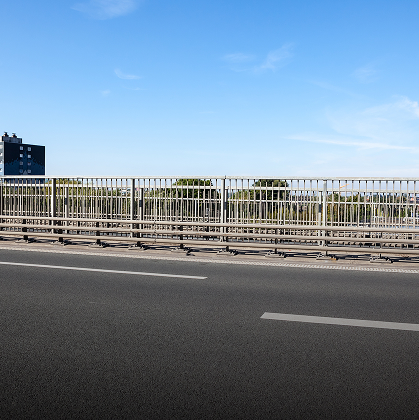

Bridge Railings

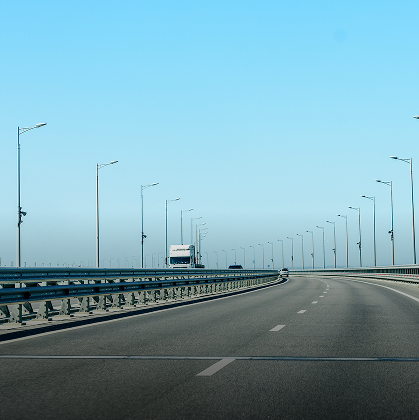

Flyovers

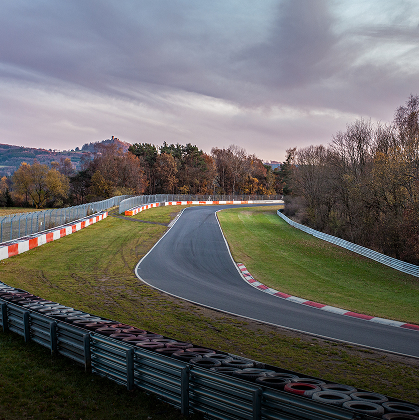

Motor Racing/
Test Drive tracks

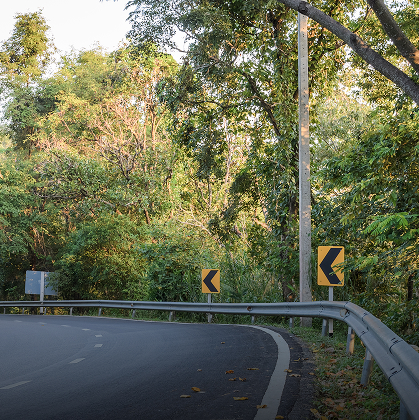

High Embankments/
Sharp Curves and Banks

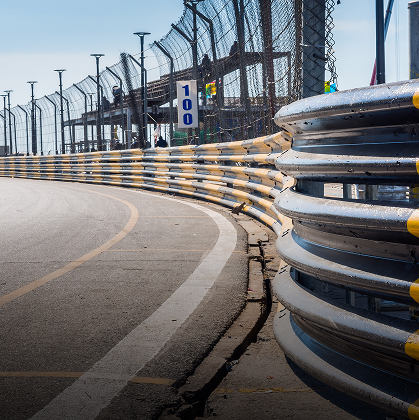

Crash Testing Sites
