ERW Round Pipes
Powering Possibilities
and Progress

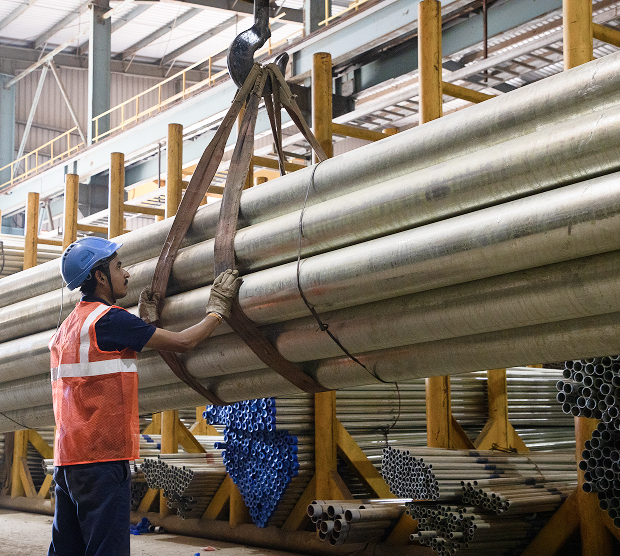

Jindal (India)’s ERW round pipes combine versatility and durability, and are available in both black and galvanised finishes.

Manufactured from hot rolled coils using High-Frequency Welding (HFW) technology and stringent quality checks, these pipes deliver exceptional strength, accurate dimensions, and long service life, earning the trust of infrastructure developers nationwide.

Our ERW/HFW steel tubes serve applications in MEP (Mechanical, Electrical & Plumbing), general engineering, industrial fluid and chemical conveyance, firefighting, deep boring, HVAC, sewage, and more. They comply with Indian and international standards (IS, BS, ASTM, EN), including IS 1239-Part 1, IS 3589, IS 3601, IS 1161, IS 4270, and IS 9295.

Available sizes range from ½” (21.3 mm OD) to 20” (508 mm OD), with thicknesses up to 14.3 mm. For water wells, pipes conforming to IS 4270 are offered in 100 mm NB to 500 mm NB, thicknesses up to 10 mm, Grade Fe 410. We also manufacture ERW/HFW tubes for idlers and belt conveyors as per IS 9295, available up to 219.1 mm OD and 7.1 mm thickness, in grades YST 210, 240, 310 & 355.

Advantages
ERW Round Pipes (Black & GI)

Manufactured with precision forming and sizing techniques, Jindal India ERW pipes ensure uniform diameter, thickness, and straightness—ideal for applications requiring tight tolerances.

The high-frequency electric resistance welding process delivers strong, consistent welds without filler material, resulting in smooth surfaces and reliable structural performance.

Available in both Black (non-coated) and GI (Galvanized Iron) variants, these pipes serve diverse industries—ranging from agriculture and scaffolding to plumbing, automotive, and general fabrication.

Made from high-quality raw materials and tested rigorously, the pipes offer long service life, even in demanding conditions. Their strength and resilience reduce maintenance costs over time.

Jindal India offers a wide range of diameters, wall thicknesses, and material grades to cater to varied technical and commercial requirements.

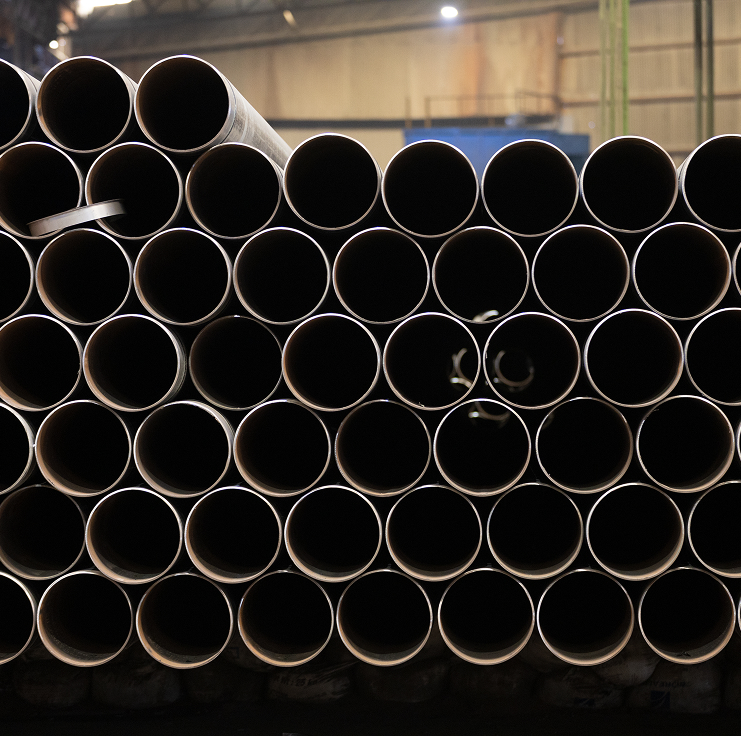

Specifications
ERW Round Pipes
Production Capacity 3,00,000 MT per annum
Manufacturing Process ERW/HFW Welding Process
Outside Diameter 1/2" [15 mm NB] to 20"
[508 mm NB]
Wall Thickness Range 1 mm to 14.3 mm
Pipe Length 4 to 18 Meters
Pipe Ends Plain / Beveled / Socketed / Screwed
Specifications & Grades ASTM A-53 GR A & B, ASTM A- 252 GR1, 2 & 3, EN – 10219, EN – 10255,
ASTM A-500 GR A, B, C & D, IS:1239, IS:1161, IS:3601, IS:4270, IS:3589, IS:9295
Protective Coating Bare, Galvanized or Rust Preventive Coating
BLACK (½" TO 20")­ / GI (½" TO 16") /­ IS 4736 / ISO 21809 / CSA245.2021 & EQUIVALENT
End Protection
Protected with Plastic / Metallic & Sockets
Applications

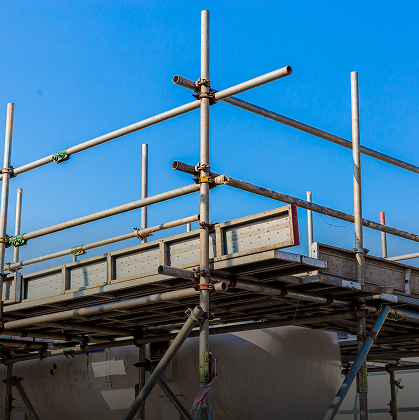

Building Frameworks
& Scaffolding

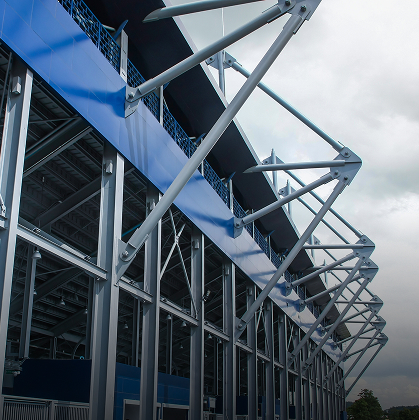

Stadium, Auditorium and
Airport Infrastructure

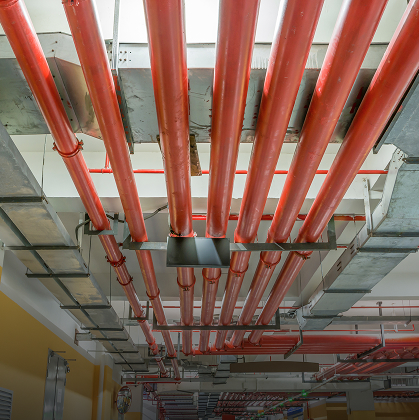

Fire Safety System Pipes

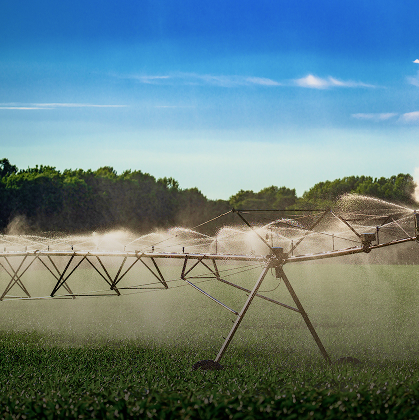

Agricultural and Irrigation
Frameworks

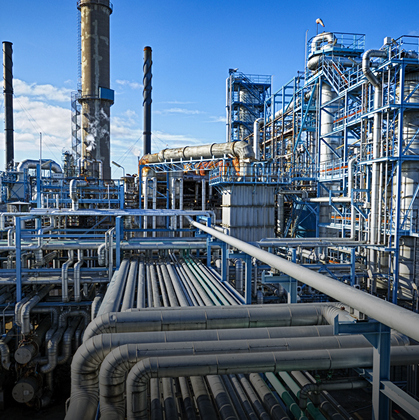

Power Plants

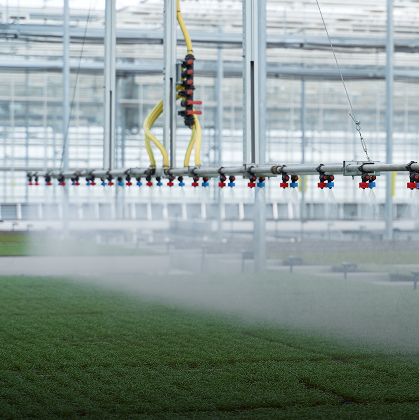

Greenhouses & Gardening

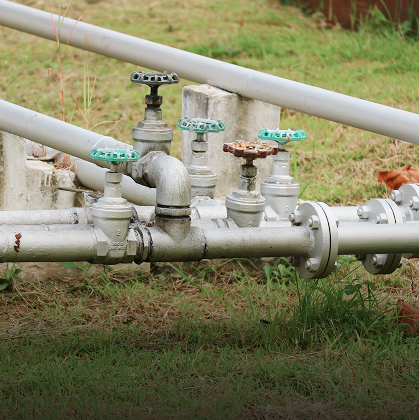

Borewell Tubing &
Water Distribution
Explore Other Products

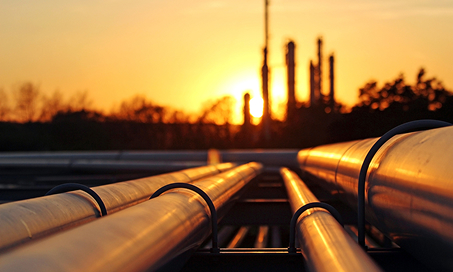

API Pipes
Know More

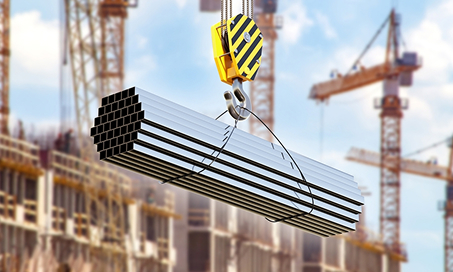

Hollow Sections
Know More

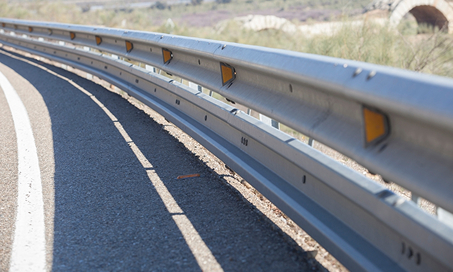

Metal Beam Crash Barrier
