API Pipes

Trusted Strength.
Proven Performance.

Engineered for high-pressure fluid transmission, our API Grade Line Pipes represent the pinnacle of pipeline technology.

These pipes are manufactured to meet the most stringent international standards, featuring advanced coating options for superior corrosion protection and extended service life. With decades of expertise in manufacturing and a commitment to innovation, Jindal India has become a trusted partner for the oil and gas industry.

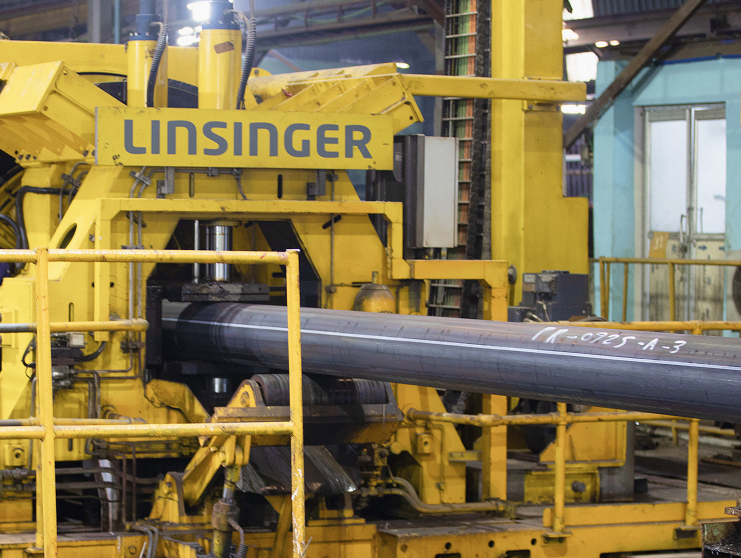

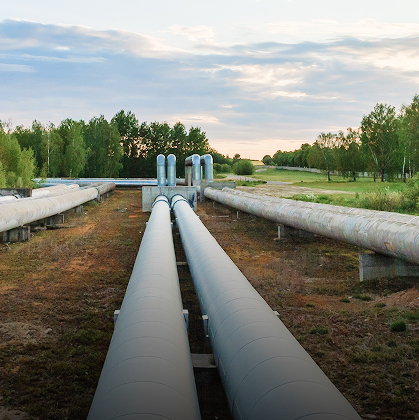

The High-Pressure Line Pipe Manufacturing facility, situated at our Jangalpur Works in Howrah, West Bengal, is dedicated to producing HFW pipes to exacting standards. Capable of manufacturing pipes with diameters up to 20" and thicknesses up to 14.3 mm, our facility caters primarily to the needs of long-distance transmission of high-pressure oil, gas, and mineral slurry, as well as serving the drilling industries and other applications requiring high test pressure capabilities.

Advantages

API Grade Line Pipes

Electric welded pipes in the HFW (High Frequency Welded) category are rapidly gaining recognition for high integrity applications within the Oil & Gas sector. Their acceptance stems from several key advantages

HFW pipes ensure precise dimensions for efficient coating and joint integrity.

Controlled mechanical strength and smooth surfaces from hot-rolled coils.

No foreign material input; solid-state HF welding reduces impurities.

API pipes built to withstand high pressure, heat, and corrosive environments.

API-certified with advanced coatings for durability, low maintenance, and long-term value.

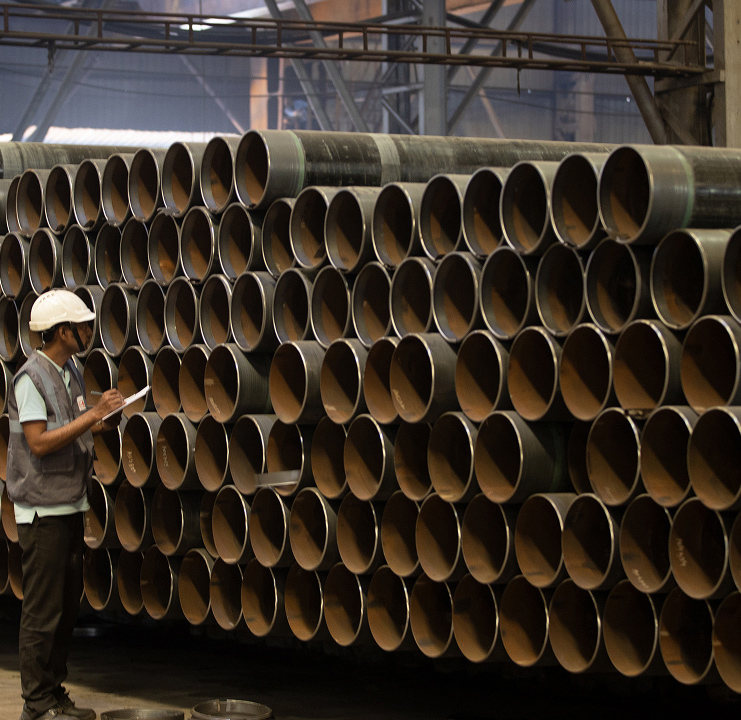

Specifications

API Grade Line Pipes

Production Capacity 150000 MT per annum

Manufacturing Process Solid State HF Welding with Seam Normalizing

Thickness Range Up to 0.562"(14.3 mm)

Pipe Length Range SRL/DRL/TRL (6 to 18 meters)

Coating Pipe Length 9 to 13 meters

End Finish Beveled or Plain End

Protective Coating Bare or Rust Preventive
Coating & Special coating
for Line pipes.

End Protection Protected with Plastic /
Metallic Caps

Outside Diameter Lines Pipes up to 20" (508.0 mm)

Casings:

Specifications & Grades API 5L GR, B TO X70M, PSL -1, API 5L GR, BM TO X80M, PSL-2

Service Annex J, Service Annex H

Download Brochure

Download Leaflet

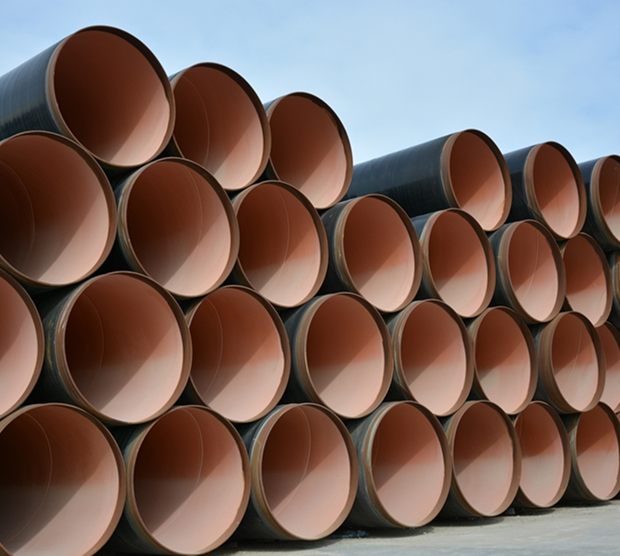

Coating Application
in Main Line Pipes

Current coating use on high pressure pipelines is dominated by FBE and 3LPE,3LPP finding increasing use for high temperature applications above the acceptable temperature range for mono-layer. FBE and PE with ISO specifications developed for these coatings. Excellent specifications have been developed by the CSA, and others for both FBE and 3LPE.
